LARGE ROOMS, UNLIMITED POSSIBILITIES

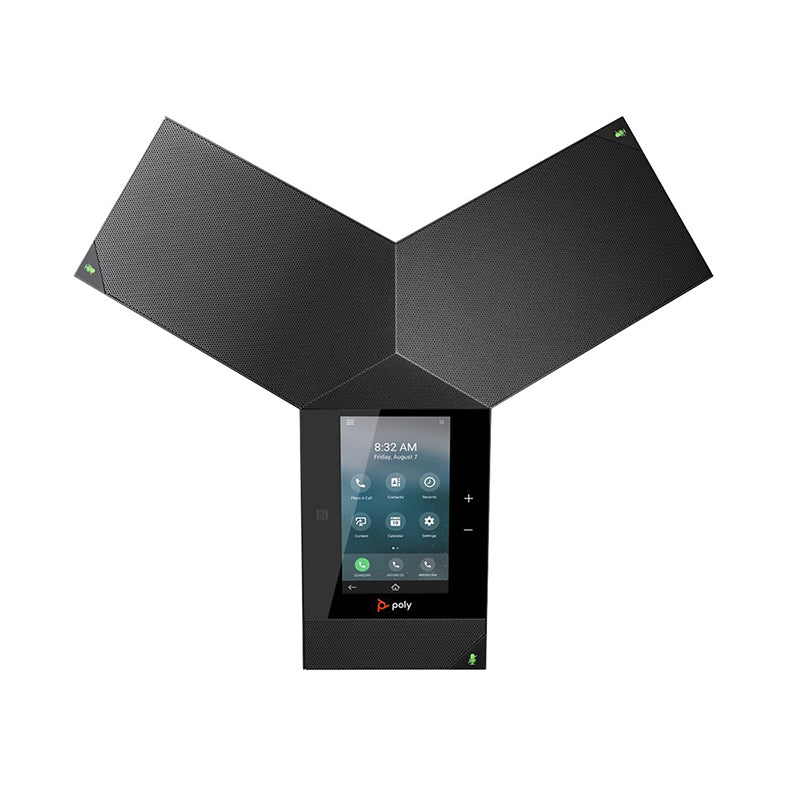

Supplying room-filling audio to large meeting rooms might be a challenge for some conference phones. Not for Trio 8800. Specially tuned mics catch every word in a 20-foot range. Wi-Fi, USB and Bluetooth® connectivity is built in. And video conferencing and content sharing can be easily added, ensuring future-proof flexibility. Get ready to transform your large spaces into powerhouses for collaboration.
KEY FEATURES:
- POLY SIGNATURE AUDIO: For a conference call that gets results, Poly audio ensures every inflection is heard, without the distracting background noise. Hear their reaction with up to 22 kHz of rich, full sound.
- ALL KINDS OF CONNECTIONS: Collaborate using audio, video, content or all three. The Trio 8800 helps teams make decisions faster through a variety of meeting options.
- HYBRID REGISTRATION: Connect to the platform you like best. Connect to one or multiple leading SIP and Cloud Conferencing Services at the same time—no need to choose just one.
- ONE-TOUCH JOIN: Join a meeting in seconds with a single touch of a button and keep your meeting time productive.
- SIMPLE MEETING CONTROL: Conveniently placed illuminated mute indicators on each leg of the device are within easy reach—so everyone can clearly see when the mic is live and when it’s muted.
- BLUETOOTH®/NFC: Easily connect your mobile device or laptop via Bluetooth®/NFC or USB, and use Trio as the speakerphone to enhance the audio experience of personal devices.
- NETWORK CONNECTIVITY: Supports IP Standards based communication, PoE/PoE+, Wi-Fi (2.4/5GHz). BYOD connectivity via Bluetooth, & USB mode.
- 5” COLOR TOUCH DISPLAY: The 5" color touch display puts familiar, easy-to-use icons and user controls at your fingertips for quick meeting starts —and calendar integration ensures your meetings get started in seconds with one-touch-join.
SPECIFICATIONS:
USER INTERFACE FEATURES:
- Gesture-based, multitouch-capable capacitive touch screen
- 5-inch color LCD (720 x 1280 pixel), 9:16aspect ratio
- On-screen virtual keyboard
- 1 USB 2.0 Type A-compliant port USB battery charging BC1.2 compliant (requires full Class 4 power input on LAN IN for operation)
- 1x USB 2.0 Micro-B device port for use as USB audio device
- Integrated Bluetooth 4.0 and NFC
- 3 multicolored capacitive-touch mute indicators
- Unicode UTF-8-character support
- User interface localized in Arabic, Chinese, Danish, Dutch, English (Canada/US/UK),French, German, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Slovenian, Spanish and Swedish
AUDIO FEATURES:
- 3 cardioid microphones
- Loudspeaker
- Frequency: 100-22,000 Hz
- Volume: 92 dB at 0.5-m peak volume
- 6 m/20 ft microphone pickup range
- Supported codecs:
- G.711 (A-law and μ-law)
- G.719
- G.722, G722.1, G722.1C
- G.729AB
- Poly Siren 7, Siren 14
- iLBC (3.33Kbps and 15.2Kbps)
- Opus (8Kbps - 24Kbps)
- SILK
- Poly Acoustic Clarity technology provides full-duplex conversations, acoustic echo cancellation and background noise suppression–Type 1 compliant (IEEE 1329 full duplex)
- Poly NoiseBlock
- Voice activity detection
- Comfort noise generation
- DTMF tone generation (RFC 2833 and in-band)
- Bluetooth device pairing for wideband speech and multimedia streaming (HFP/AD2P)
- Low-delay audio packet transmission
- Adaptive jitter buffers
- Packet loss concealment
VIDEO CONFERENCING AND CONTENT SHARING OPTIONS:
- Compatible with Trio Visual+ & VisualPro codecs with supported cameras
CALL HANDLING FEATURES:
(MAY BE DEPENDENT ON CONFIGURATION AND ECOSYSTEM)
- Up to three lines (max. one Skype for Business and Microsoft Teams)
- Shared call/bridged line appearance
- Distinctive incoming call treatment/call waiting
- Call timer and call waiting
- Call transfer, hold, divert (forward), pickup
- Called, calling, connected-party information
- One-touch speed dial and meeting join
- Local five-way audio conferencing
- Daisy-chain up to four Trios total
- Do-not-disturb function
- Local configurable digit map/dial plan
- Corporate directory access using LDAP
- Visual conference management
NETWORK AND PROVISIONING:
- Open SIP
- Skype for Business certified1
- Microsoft Teams certified1
- Zoom certified
- IETF SIP (RFC 3261 and companion RFCs)
- Two-port gigabit Ethernet switch
- 10/100/1000Base-TX across LAN and 2nd port
- 2nd port supports IEEE 802.3af PSE
- Wi-Fi network connectivity
- 2.4–2.4835 GHz (802.11b, 802.11g,802.11n HT-20)
- 5.15–5.825 GHz (802.11a, 802.11n, HT-20, 802.11n HT-40)
- Manual or dynamic host configuration protocol (DHCP) network setup
- Time and date synchronization using SNTP
- FTP/TFTP/HTTP/HTTPS server-based central provisioning
- RealPresence Resource Manager (v. 10.1 or above) based provisioning
- Poly Zero Touch Provisioning
- Provisioning and call server redundancy support
- RealPresence Resource Manager (v 10.1 or above) based provisioning
- PDMS-E, PDMS-SP
- QoS support
- IEEE 802.1p/Q tagging (VLAN), layer 3 TOS, and DSCP
- WMM (Wi-Fi multimedia)
- VLAN – CDP, DHCP VLAN discovery
- LLDP-MED for VLAN discovery
SECURITY:
- 802.1X authentication and EAPOL
- Media encryption via SRTP
- Transport layer security (TLS) v 1.2
- Encrypted con0xFB01guration 0xFB01les
- Digest authentication
- Password login
- Support for URL syntax with password for boot server address
- HTTPS secure provisioning
- Support for signed software executables
- Wi-Fi encryption: WEP, WPA-Personal, WPA2-Personal, WPA2-Enterprise with 802.1X (EAP-TLS, PEAP-MSCHAPv2)
POWER:
- LAN IN: Built-in auto-sensing IEEE 802.3at. PoE Device (Class 4) (requires full Class 4 power input on LAN IN for operation). Backward compatibility with IEEE 802.3af
- LAN OUT: Built-in auto-sensing IEEE 802.3af power sourcing equipment (requires full Class 4 power input on LAN IN for operation)
PHONE DIMENSIONS (L X W X H):
- 38.3 x 7.5 x 33.2 cm (15.1 x 2.9 x 13.1 in)
- Unit weight: 950 g/2.1 lbs
BOX DIMENSIONS (L X W X H);
- 48.3 x 11.5 x 39.4 cm (19 x 4.5 x 15.5 in)
- Box weight: 1970 g/4.3 lbs
PACKAGE INCLUDES:
- Trio 8800 Phone Console (open SIP): 2200-66070-001
- 7.6-m/25-foot network cable CAT 5e
- 2-m/6.5-foot USB 2.0 cable
OPTIONAL ACCESSORIES:
- Poly Trio Expansion Microphones (2200-65790-001)
- Power kit incl. ext. single-port gigabit midspan, 802.3at Type 2 compliant, local power cord and network cable (7200-23490-xxx)
WARRANTY:
- 2-year limited hardware replacement warranty against manufacturing defects
